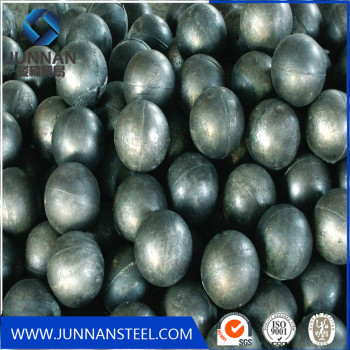

80毫米锻钢磨球
| Categories | Forged grinding ball |
|---|---|
| Brand | Junnan Steel |
| Material | 45#, 60Mn, 65Mn, B2, B3, B4, etc |
| Hardness | 60 - 65 hrc |
| Standard | DIN GB ISO JIS BA ANSI YB/T091-2005 |
| Impact Toughness | 12 J/cm² Min |
| Falling Test Times | 12000 Times Min |
| Diameter range | 20mm-150mm |
| Chemical Elements | C Si Mn P S Cr |
| Breakage Rate | <1% |
| Unit Price | US $ 500/ton |
| FOB port | Xingang /Caofeidian /any other main ports in China |
| 术语s of Payment | L/C, D/A, D/P, Western Union, MoneyGram, T/T |
| Update Time | 2022-03-01 |
|
Material
|
C
|
Mn
|
Si
|
Cr
|
S
|
P
|
|
50Mn
|
0.48-0.56
|
0.70-1.0
|
0.17-0.37
|
0.25 max
|
0.035 max
|
0.035 max
|
|
60Mn
|
0.57-0.65
|
0.70-1.0
|
0.17-0.37
|
0.25 max
|
0.035 max
|
0.035 max
|
|
65Mn
|
0.60-0.70
|
0.90-1.20
|
0.17-0.37
|
0.25 max
|
0.035 max
|
0.035 max
|
|
75Mn
|
0.72-0.92
|
0.17-0.37
|
0.7-1.0
|
0.4-0.6
|
0.035 max
|
0.035 max
|
|
75MnCr
|
0.70-0.85
|
0.7-0.8
|
0.17-0.37
|
0.2-0.7
|
0.03 max
|
0.03 max
|
|
75SiMn
|
0.70-0.90
|
0.7-1.2
|
0.4-0.8 |
0.25 max
|
0.03 max
|
0.03 max
|
|
Size(mm)
|
Tolerance(mm)
|
Weight(kg/pc)
|
Quantity(pcs/ton)
|
|
φ20
|
+2 -1
|
0.032
|
31250
|
|
φ25
|
0.064
|
15625
|
|
|
φ30
|
0.11
|
9090
|
|
|
φ40
|
0.263
|
3802
|
|
|
φ50
|
0.513
|
1949
|
|
|
φ60
|
+3 -1
|
0.888
|
1126
|
|
φ70
|
1.41
|
709
|
|
|
φ80
|
2.104
|
475
|
|
|
φ90 |
2.996
|
333
|
|
|
φ100
|
+4 -2
|
4.11
|
243
|
|
φ110
|
5.457
|
182
|
|
|
φ120
|
7.102
|
140
|
|
|
φ130
|
9.03
|
110
|
|
|
φ140
|
+3 -3
|
11.278
|
88
|
|
φ150
|
13.871
|
72
|
Impact Test Machine
Hardness Tester
It is used to test hardness
Wire-Electrode Cutting
Chemical Analysis Control
Hardness Control
Dimensional Tolerances Control
Feeding Breaking Control
Mismatch Control
|
Packing specification
|
||
|
Bag
|
diameter17-150mm
|
1000kg/bag
|
|
Drum
|
diameter17-25mm
|
1000kg/drum
|
|
diameter30-50mm
|
950kg/drum
|
|
|
diameter60-70mm
|
900kg/drum
|
|
|
diameter80-90mm
|
850kg/drum
|
|
|
diameter100-150mm
|
800kg/drum
|
|
|
20feet container
|
25bags or 25-32drums
|
|
|
40feet container
|
27bags or27-34drums
|
|
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q:Could you accept OEM and customization?
A:YES, we can customize for you according to sample or drawing.
Q: Do you like to accept small orders?
A:We enjoy growing up together with all our clients, whatever big or small. You will become bigger and bigger to be with us.
Q:What's your warranty?
A:1 year.
Q: Can you provide free sample?
A:Yes, we are glad to supply free samples which quantity is less than 10kgs. But usually the courier fee should be paid by customer.
Q:Do you have any certificate?
A:Yes, our company has ISO 19001:2008 certificate.
We could also supply customer the Test report, SGS by third party.
